Service 4wd light is on. The first thing that happens is that the electronic control module receives input from the transfer case shift position sensor to verify what position the transfer case is in 2H 4H or 4L.
Transfer Case Control Module Location Tccm Dodgeforum Com
4WD Mode Switch Instrument panel mounted switch sends input signal to GEM pertaining to commanded transfer case range.
4wd transfer case position sensor selector switch. DIAGNOSING GMS 4WD SYSTEM LeftATC information can be found under the Powertrain menu on the Tech 2 scan tool. The 4WD transfer. 4wd selector switch motor parts transfer case transfer.
Reason Behind 4wd Transfer Case Position Sensor Selector Switch Failure. It is often more cost-effective to replace the sensor but care must be used in the replacement procedure. The 4wd transfer case position sensor switch may get stuck in one particular position and may resist shifting.
Were all tightened and harness hooked up I switched on the ignition and the Service 4WD message was gone and the 4WD lights on the switch appeared to function properly. This is a common problem that truck owners have to face. A mechanic can diagnose the issue in several ways.
Service 4wd message on your DIC. I had a similar problem with 4 wheel drive selector switch. The 4WD transfer case encoder motor position sensor or the selector switch may fail causing the service 4WD message to be displayed.
One of the first things your mechanic will check is the switchs voltage input and output. A Tech 2 information screen will also let you know whether certain 4WD systems do not allow scan tool access. ACDelco 88962315 GM Original Equipment Transfer Case Range Select Position Sensor Visit the ACDelco Store.
Check Transfer Case control module sensor andor 4WD transfer case encoder motor position sensor andor the selector switch. Throttle Position TP Sensor The TP sensor is a potentiometer mounted to the engine throttle body. The 4WD transfer case encoder motor position sensor or the selector switch may fail causing the service 4WD message to be displayed.
In the words of slick Willy Clinton I feel your pain. Fault codes stored in the transfer case control module will be of assistance in determining the exact fault causing the message to be displayed. Fault codes stored in the transfer case control module will be of assistance in determining the exact fault causing the message to be displayed.
Both the actuator motor and sensor part number 88962314 or the sensor only part number 88962315 can be ordered. A failing 4wd transfer case position sensor selector switch is one of the most common reasons behind transfer case failure in four-wheel drives. The PCM receives a signal from TP sensor relaying throttle plate position.
No lights on your selector switch etc. When I select 4. Transfer Case Switch Replacement.
4WD Transfer Case Position SensorSelector. ACDelco now offers the 4WD transfer case actuator motor and range selector position sensor for 2003-2007 GM full-size trucks. The selected position indicator light will flash until the transfer case completes the shift.
Transfer case mode switch malfunc-tion. After 2O minutes the SERV 4WD light illuminates and the system will not engage the 4WD. My 98 f150 was in 4WD Hi this morning when I If the switch was in the 2WD position and the transfer case was locked in a 4WD range my 2 SWAGs would be bad switch or the connector to the shift motor is damaged corroded or the fuse to the transfer case shift relay module is blown fuse 17 problem with the transfer case shift relay module.
Here are some causes that lead to the break-down of the sensor selector switch. The 4WD transfer case encoder motor position sensor or the selector switch may fail causing the service 4WD message to be displayed. If in 4WD the system.
Fault codes stored in the transfer case control module will be of assistance in determining the exact fault causing the message to be displayed. Lights on selector switch flash when key on but go out. Wish I could be more specific and good luck.
This is specifically for 2003-2007ish GM trucks with the NP8 electronic shift transfer case though there may be other applications as well. Next the electronic control module looks at the speed sensor and the. 4WD engages when the selector switch is turned to either 4H or 4L and returns to 2WD by the selector switch.
The encoder ring tells the 4WD switch what gear the transfer case is in. When the shift is complete the indicator light for the selected position will stop flashing and remain ON. The 4WD transfer case encoder motor position sensor or the selector switch may fail causing the service 4WD message to be displayed.

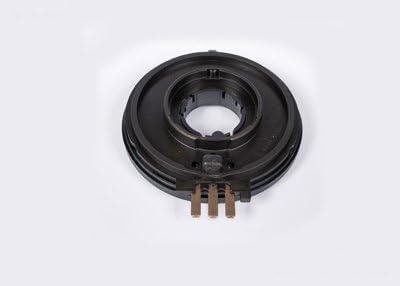

You can replace the whole range selector motor but mine at 106k was fine just needed the encoder ring. Fault codes stored in the transfer case control module will be of assistance in determining the exact fault causing the message to be displayed. The 4WD transfer case encoder motor position sensor or the selector switch may fail causing the service 4WD message to be displayed.
4WD Transfer Case Position SensorSelector. The transfer case neutral position needs to be selected before you attempt to engage 4WD. Mine was worn in 2WD position so did strange things but if it would switch to 4AUTO it stayed there fine and worked well.
Fault codes stored in the transfer case control module will be of assistance in determining the exact fault causing the message to be displayed. Sounds like the dealership has replaced all the big expensive parts now on to the little sensor bits. C1405 transfer case range position sensor circuit high TIPM Possible causes totally integrated power module TIPM fuses.
The dash-mounted transfer case 34 June 2004 TRANSFER CASE STUDIES. The GEM and PCM are linked by a communication network.
4wd Transfer Case Position Sensor Selector Switch Failure
Replacing 4wd Transfer Case Actuator Motor And Range Selector Position Sensor For 2003 2007 Gm Full Size Trucks
The New Venture Dodge 244 Transfer Case Are You Confused Yet Transmission Digest

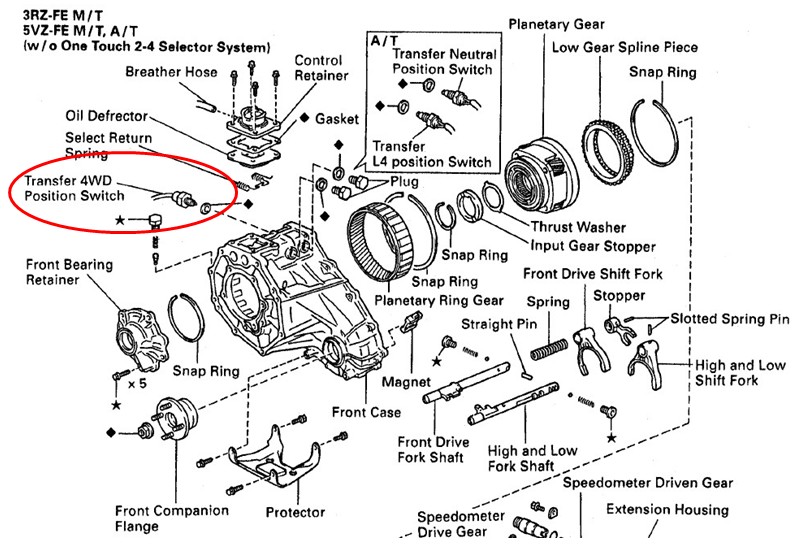

4wd Transfer Indicator Switch Toyota 4runner Forum Largest 4runner Forum
